“SUB-BUSES“ Tab

The “SUB-BUSES“ tab lists all the sub-bus devices for this controller that are configured in the Application template, including the information relevant for the specific type, such as the address, line in the node structure, etc.

This tab appears only when the “Controller“ entity is selected.

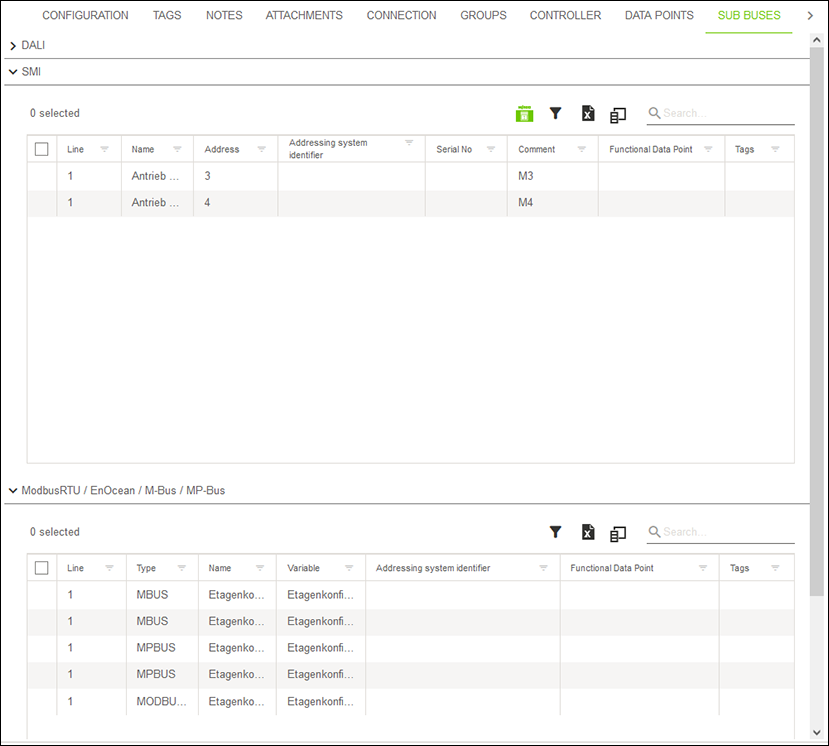

Side Menu > “Solutions” Menu > “Configuration” Menu Item > “SUB-BUSES” Tab (Example Illustration)

Direct Links to Configurators

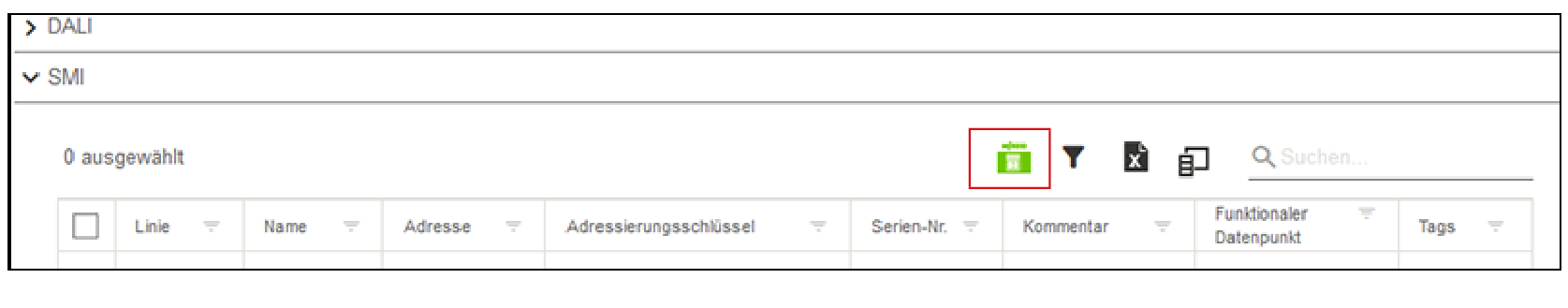

“SUB-BUSES“ Tab > Buttons for Configurators

Projects can be opened from the “SUB-BUSES” tab and synchronized directly in the WAGO SMI Configurator and WAGO DALI Configurator configurators.

For the DALI or SMI project that has been opened, you can open it directly in the WAGO SMI Configurator or WAGO DALI Configurator software via the corresponding configurator icon. The configurators open in “WAGO Solution Builder mode”; therefore, all changes – such as specific customizations for a controller instance with an additional DALI ECG – are synchronized when you close the configurator and return to the WAGO Solution Builder software. The controller’s DALI or SMI configuration is then unlinked from the Application template, since it has been customized.

Direct Links to Configurators
Icon	Description
	Opens the project in the WAGO SMI Configurator software in “WAGO Solution Builder mode.”
	Opens the project in the WAGO DALI Configurator software in “WAGO Solution Builder mode.”
