DALI Manager

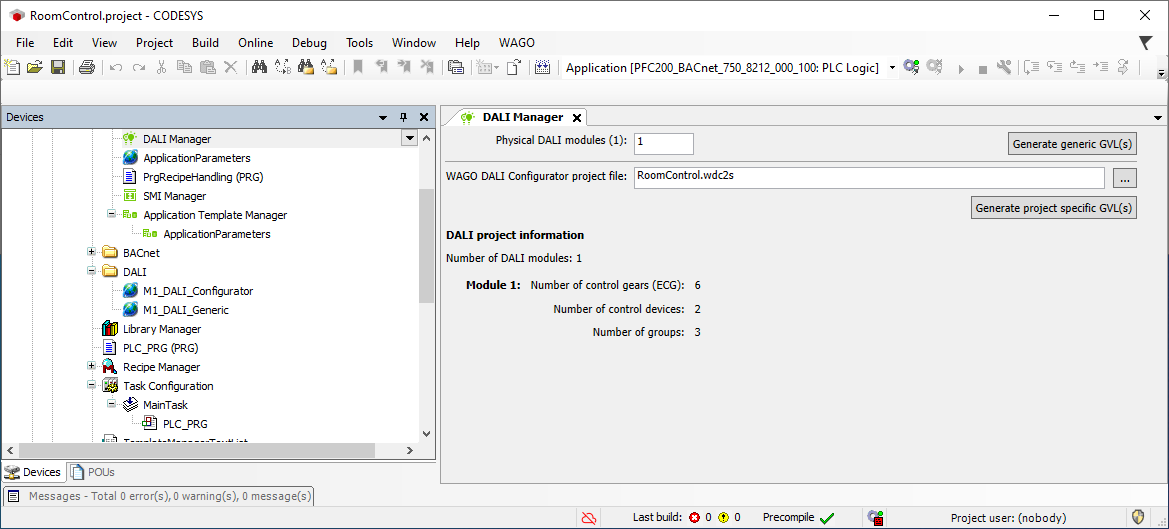

DALI Workspace

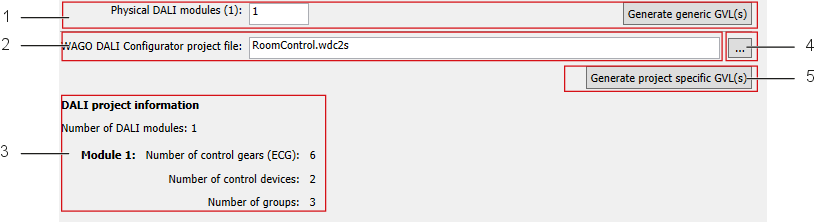

Position | Designation | Description | |
|---|---|---|---|
1 | Physical DALI Modules | Displays and allows you to enter the number of physical DALI modules in the hardware configuration for the application used. | |
[Generate Generic GVL(s)] | Generates a generic global variable list (program code) for using DALI in the IEC application. | ||
2 | Project File for WAGO | Option for entering the path to the DALI Configurator project file with the suffix *.wdc2c. | |
3 | DALI Project Information | Shows a summary of the contents of the selected DALI project. A list of all the implemented DALI devices appears. | |
4 | File Selection |
| Opens a dialog for selecting the DALI Configurator project file. |
5 | [Generate Project-Specific GVL(s) | Generates a project-specific global variable list (program code) for using DALI in the IEC application. | |
