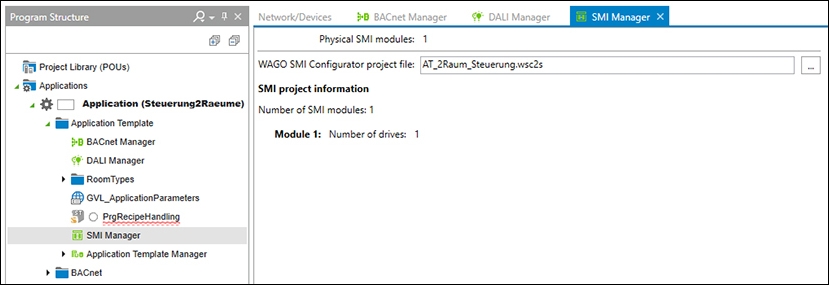

IEC Development Environment: SMI Manager Program Structure and Workspace
IEC Development Environment: SMI Manager Program Structure and Workspace

SMI Workspace

IEC Development Environment: SMI Manager Workspace
IEC Development Environment: SMI Manager Workspace

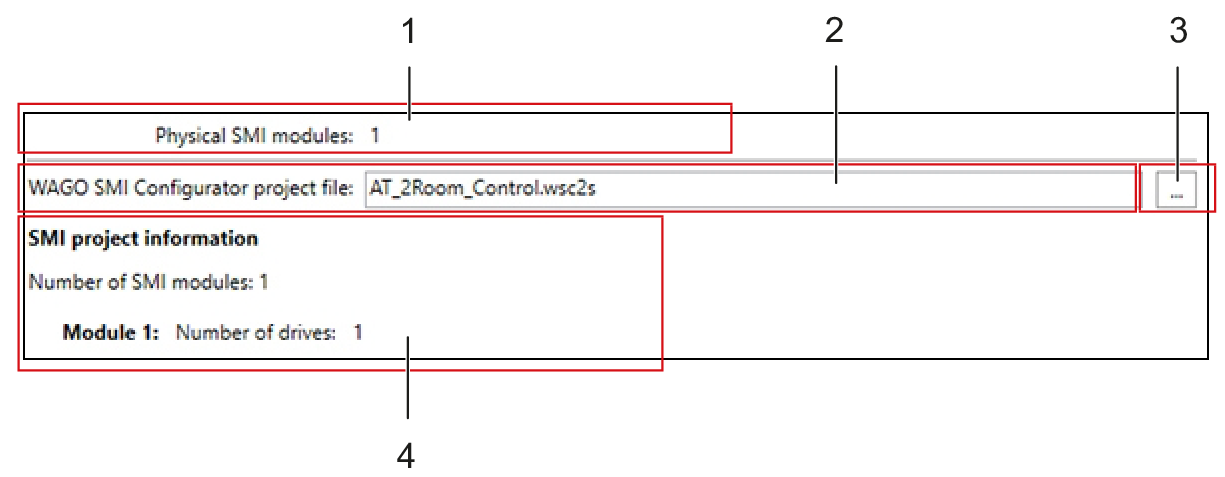

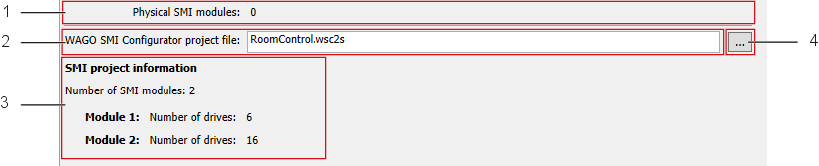

Position

Designation

Description

1

Physical SMI Modules

Shows the number of physical SMI modules in the hardware configuration of the application used.

2

Project File for WAGO
SMI Configurator

Option for entering the path to the SMI Configurator project file with the suffix *.wdc2c

3

SMI Project Information

Shows a summary of the contents of the selected SMI project.

A list of all the implemented SMI drives appears.

4

File Selection

Opens a dialog for navigating to the SMI Configurator project file
