Licenses
To use the WAGO Solution Builder software to its full extent and with any number of controllers, licenses are required.
After registering for the first time in WAGO Solution Builder software, you can use it for 30 days without a license key for testing purposes. During the evaluation period, a banner appears in Start View showing the remaining validity period of the evaluation license.
Once the evaluation period has expired, the WAGO Solution Builder software can continue to be used in full with up to three existing controllers without an active license. If more than three controllers are used, a corresponding license must be purchased.
The licenses are valid for one year. This validity period starts when the license is activated.
As soon as a license has been purchased and activated, the banner disappears in the Start View. In “Solutions” Menu, a green checkmark appears after “Licensing“ Menu Item:

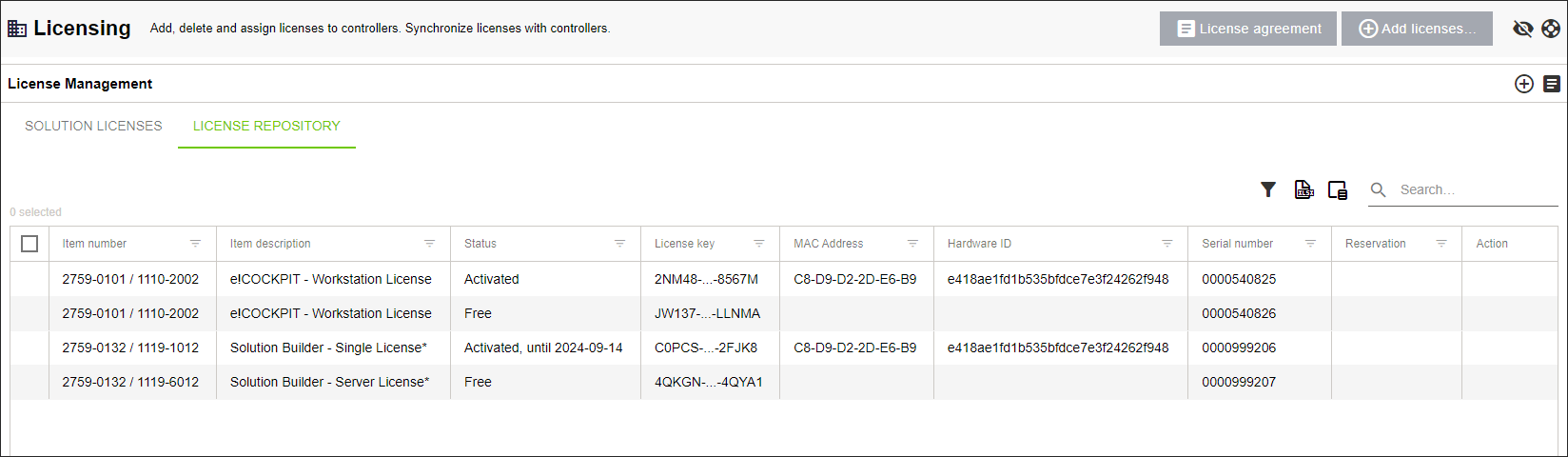

In “Licensing“ Menu Item, all purchased and activated licenses are listed in the “LICENSE REPOSITORY” tab:
For the WAGO Solution Builder software, WAGO offers three different licenses:
Designation | License Type | Description | Item Number |
|---|---|---|---|
WAGO Solution Builder; | Single license | The license can be used on one PC. A user can create any number of solutions (projects) and use them to their full extent. | 2759-0132/1119-1012 |
WAGO Solution Builder; | Site license | The license can be used on one server. Any number of users can create a solution (a project) and use it to its full extent. | 2759-0132/1119-3012 |
WAGO Solution Builder; | Server license | The license can be used on one server. Any number of users can create as many solutions (projects) as they want and use them to their full extent. | 2759-0132/1119-6012 |
