Header Bar

The header bar shows information about the user who is currently logged in and a path to the location of the contents currently being displayed, as well as shortcuts to the product manual, Help function and Start screen. The contents of the footer bar do not depend on the selection in the side menu and action area.

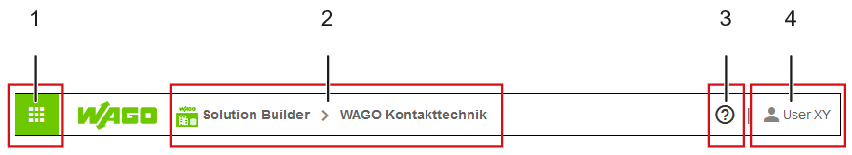

The header bar has the following structure:

Position	Designation	Description
1	“Back to Start Screen”		Closes the current screen in a solution’s action area and the open side menu and returns to the Start screen.
2	Location Path	Shows the solution that is currently open. Example: Once a solution is selected on the Start screen, a corresponding location path appears in the header bar, indicating the solution that is currently open.
(–)	Certificate Info (optional)		Indicates that existing server certificates will expire in less than one month.
3	Product Manual		Opens the product manual in PDF format.
4	Help/F1		Opens the context-sensitive Help function for the contents shown in the action area. Note: Context-sensitive Help may differ! Depending on whether the connection status is online or offline, different versions of the Help may be displayed. If there is an Internet connection, the WAGO Solution Builder software retrieves the latest available help from an external server. If there is no Internet connection, the software retrieves the embedded Help.
5	User		Indicates the user who is currently logged in.
