Application Parameters

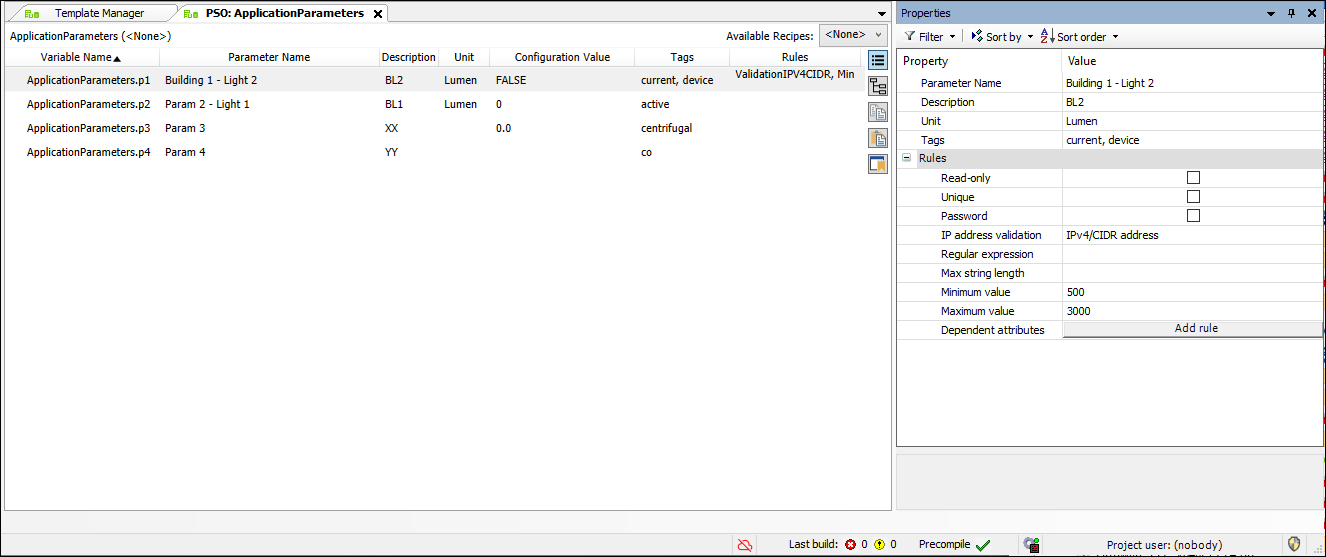

Application parameters (Parameter Set Objects) are always linked to formula definitions from an IEC Development Environment. The naming of formula definitions is subject to the strict CODESYS rules (e.g., no spaces or special characters). Here however, you can rename the parameters and describe them in more detail. These settings will be visible later on the configuration screen of the corresponding application in WAGO Solution Builder.
Designation | Description |
|---|---|
Available Formulas | Here you can select a formula. Normally, the “<None>” selection is used. |
Variable Name | Here you can display and edit the name of the parameter from the formula definition of the IEC Development Environment. |
Parameter Name | Optional field: Here you can display and edit the parameter name in WAGO Solution Builder. Special characters are allowed in this field. |
Configuration Value | Shows the value defined for a parameter in the program code or in the selected formula.
Note: |
Description | Optional field: Here you can display and edit the description of the parameter in WAGO Solution Builder. |
Tags | Optional field: Here you can display and edit the parameter tags. A selection list of all tags appears when the field is selected; any number of tags can be selected and thus assigned to a parameter. |
Unit | Optional field: Here you can display and edit the physical unit of the parameter value. |

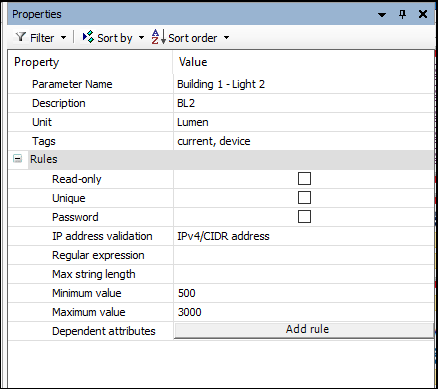

Rule | Optional field: Here you can display and edit the parameter rules. When the field is selected, a properties window opens. in which rules can be selected or new rules created.
Note: |
