“Functional Structure” Contextual Menu

Add

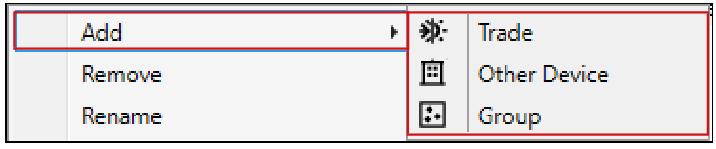

Adds a structural element.

The submenu contains all the elements from the addressing system allowed at this point (structure definition).

Remove

Deletes the selected structural element.

Rename

Changes the name of the selected structural element.

Alternative option:

In the “Name” column, left-click on the structural element you want.

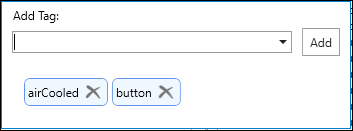

Add/Edit Tags

Adds new tags and/or removes existing ones.

Alternative option:

Left-click in the “Tags” column.

Copy

Copies the selected structural element(s) to the clipboard.

Paste

Pastes the structural element from the clipboard.

Assign Parameter Nodes

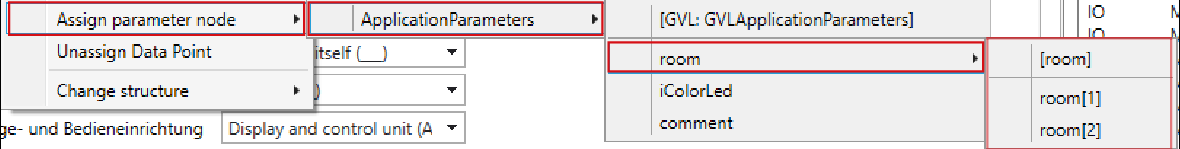

Selects a structure variable (parameter node) from a Parameter Set Object (PSO) and assigns it to the structural element as a data point.

The structure of the context menu corresponds to the structure of the Parameter Set Object. The menu item with square brackets is used to select the higher-level variable.

Once parameter nodes have been assigned, only the specific variable content appears in the WAGO Solution Builder software.

Cancel Data Point Assignment

Removes the link between the physical data point and the data point in the functional structure.

Modify Structure

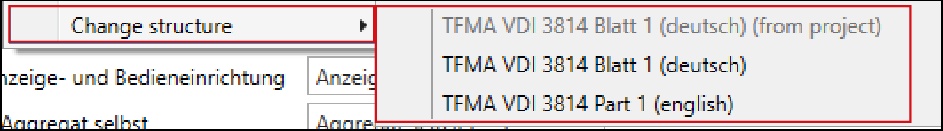

Switches to a different addressing system (structure definition).

The addressing systems that come standard are displayed.

This function can also be used in case the addressing system is changed to a newer version. The project saves the addressing system used up to this point. If a new addressing system is provided via the WAGO Solution Builder Plug-in software, you can use this menu item to update the addressing system to the new version.
