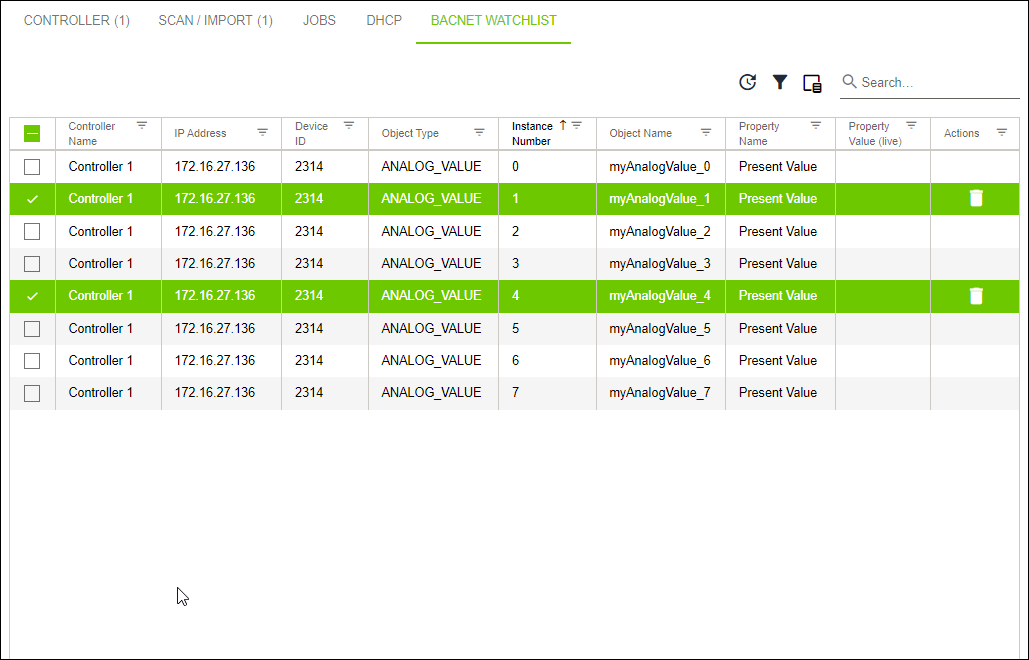

“BACnet WATCHLIST” Tab

The “BACnet WATCHLIST” tab shows all the properties of the selected BACnet objects from the “Data Points” tab (see 8 “DATA POINTS” Tab).

8
Side Menu > “Solutions” Menu > “Network” Menu Item > “BACNET WATCHLIST” Tab
Side Menu > “Solutions” Menu > “Network” Menu Item > “BACNET WATCHLIST” Tab

Designation

Description

Starts cyclic querying of all BACnet objects and, the first time it is invoked, also opens the “BACnet Settings” dialog (see 8 “DATA POINTS” Tab). In this dialog, you can configure the BACnet settings in such a way that the current values for “Property Value” are read out live from the BACnet stack and shown in the Property Value (Live) column (see below) in the WAGO Solution Builder software.

Stops cyclic querying of the BACnet objects;

only visible if a query was started previously.

Controller Name

Name of controller

IP Address

IP address of controller

Device ID

“Device ID” per BACnet standard

Object Type

“Object Type” per BACnet standard

Instance Number

“Object Instance” per BACnet standard

Object Name

“Object Name” per BACnet standard

Property Name

“Object Property” per BACnet standard

Property Value (Live)

The values for “Property Value” appear in this column live from the BACnet stack. Reading out the values requires the BACnet settings to be configured accordingly (see 8 “DATA POINTS” Tab).

Action

Deletes the selected “Property Value.”
