Instruction Area
The instruction area provides assistance in using the Software’s graphical user interface. In addition to the instruction texts and tips displayed in the instruction area, the pop-up Help function can also be activated. This function offers additional information and short descriptions of the individual functions of the graphical user interface. You can enable/disable both of these support functions at any time.

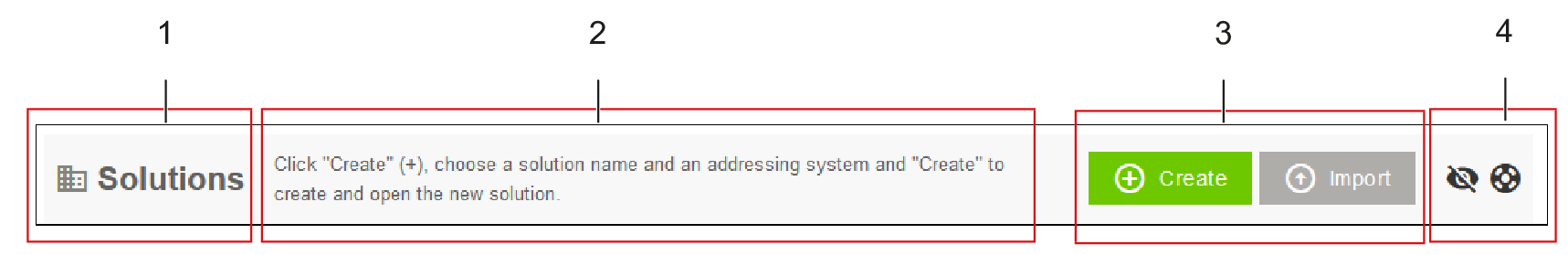

Position | Designation | Description | |
|---|---|---|---|
1 | Name of Selected Menu Item | Shows the name of the menu item selected in the side menu. Specific instruction text appears for each menu item. | |
2 | Instruction Text | Shows tips and instructions for each menu item selected in the side menu. | |
3 | Shortcuts | Shows shortcuts for each instruction text to help you directly get to your destination. The contents of this area always depend on the instruction text that is displayed. | |
4 | Hide Instruction Area |
| Hides the instruction area. For some examples of instructions displayed for different menu items, see section “Instruction Examples directly after this table. The instruction area can be turned back on in the “Settings” menu (see 8 “User Settings” Area). |

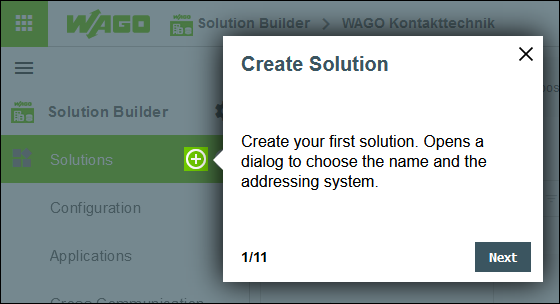

Enabling/Disabling the Pop-up Help |
| Highlights individual user interface functions one after the other and also shows tooltips in addition for the instruction area. The tooltips offer guidance and short descriptions.
| |

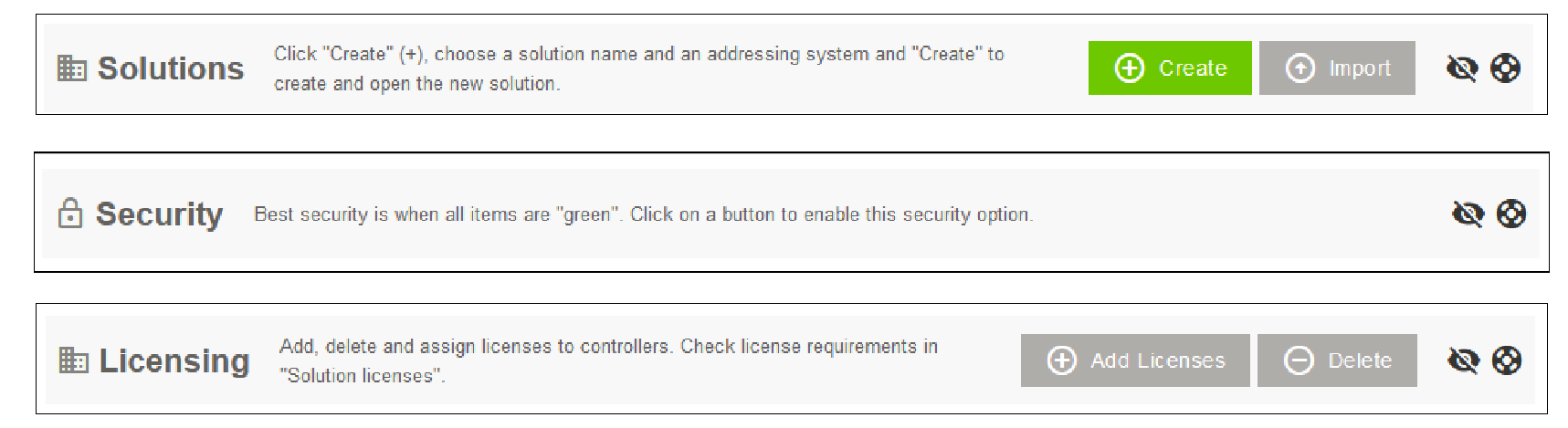

Example Instructions
