“SCAN / IMPORT“ Tab

The “SCAN / IMPORT” tab allows you to import a BACnet Configurator project file and search an existing IP network for new devices.

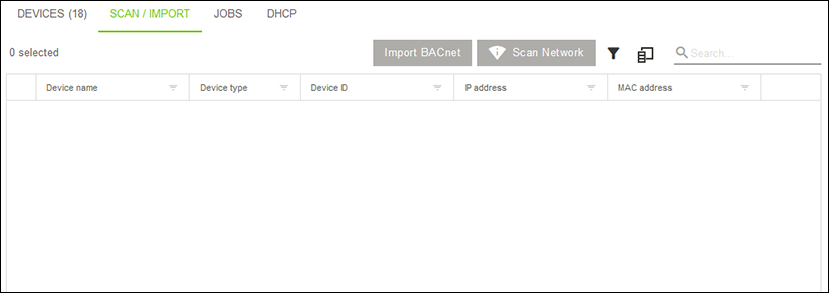

Side Menu > “Network” Menu Item > “SCAN / IMPORT” Tab
Side Menu > “Network” Menu Item > “SCAN / IMPORT” Tab

Designation

Description

[Import BACnet]

Imports a WAGO BACnet Configurator project file in *.wbc format. The project file may contain a scan or EDE import of a third-party BACnet device, for example. As a result, the BACnet device can be placed in the WAGO Solution Builder software’s entity tree as a “third-party controller“ and integrated into the cross-communication.

For more information, see 8 “Import BACnet Project“ Dialog.

[Scan network]

Scans an existing IP network using a ping query or BACnet mechanisms. You can then select the device type, such as “Controller“ or “Third-party controller“ for the responding devices; the devices are then placed in the WAGO Solution Builder software’s entity tree.

For more information, see 8 “Scan Network“ Dialog.

Device name

Shows the hostname of a device.

Device Type

For selecting the device type to use in the WAGO Solution Builder software.

Device ID

Shows the BACnet device ID of a device.

Note: Information only appears when a BACnet scan is performed!

IP address

Shows the IP address of a device.

MAC address

Shows the MAC address of a device.

Note: If the IP communication needs to pass through an IP router on the way to the device, the MAC address shown here may differ from the actual device’s MAC address.

Serial Number

Shows the serial number of a device.

Status

Indicates the status of a device.

Firmware Version

Shows the firmware version of a device. This field is filled in automatically when the network is scanned.

Note: The field is only filled in automatically for devices that support WDA!

Item Number

.Shows the item number of a device. This field is filled in automatically when the network is scanned.

Note: The field is only filled in automatically for devices that support WDA!
