Side menu open
The opened side menu is displayed when a solution has been selected. The Settings continues to be available when the side menu is opened.

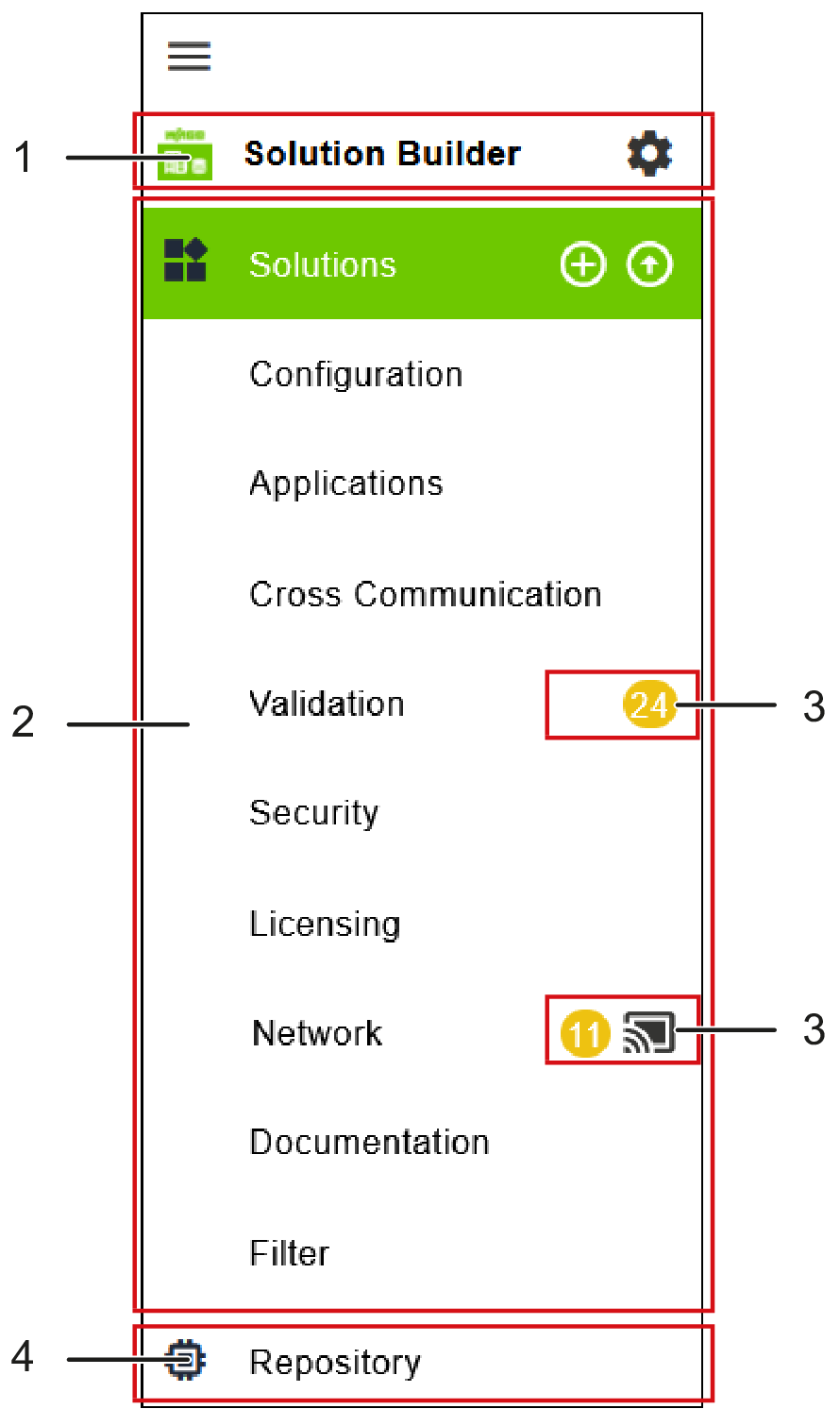

The opened side menu is structured as follows:
Position | Designation | Description | |
|---|---|---|---|
1 | “Settings” Menu |
| Opens the settings dialog for the Software. For more information, see 8 “Settings” Menu. |
2 | “Solutions” Menu | Open (expanded) “Solutions” menu with all menu items for managing and configuring solutions and devices. For more information, see 8 “Solutions” Menu. | |
| Creates a new solution. Opens the “Create Solution” dialog. For more information, see 8 “Create Solution” Dialog. | ||
| Imports an existing solution. Opens the “Import Solution” dialog. For more information, see 8 “Import Solution” Dialog. | ||
3 | New messages and network connection status | Indicates the number of new messages in the “Validation” and “Network” menu items and the connection status for the solution under the “Network” menu item. You can change the connection status by clicking on the status icon (offline/online). For information about these icons, see 8 “Validation“ Menu Item and 8 “Network“ Menu Item. | |
4 | Repository | Storage and management of software packages, such as firmware for the supported controllers. For more information, see 8 “Repository“ Menu. | |
