e!COCKPIT IEC Development Environment

The WAGO Solution Builder Plug-in component is an extension for IEC development environments and supports the creation of application templates for building automation applications. The created application templates are linked to devices in the WAGO Solution Builder software. Thus any number of application template instances can be created. The application template specifies the devices (item number), node setup and firmware to use.

8 8

The graphical user interface within the IEC Development Environment has the following structure.

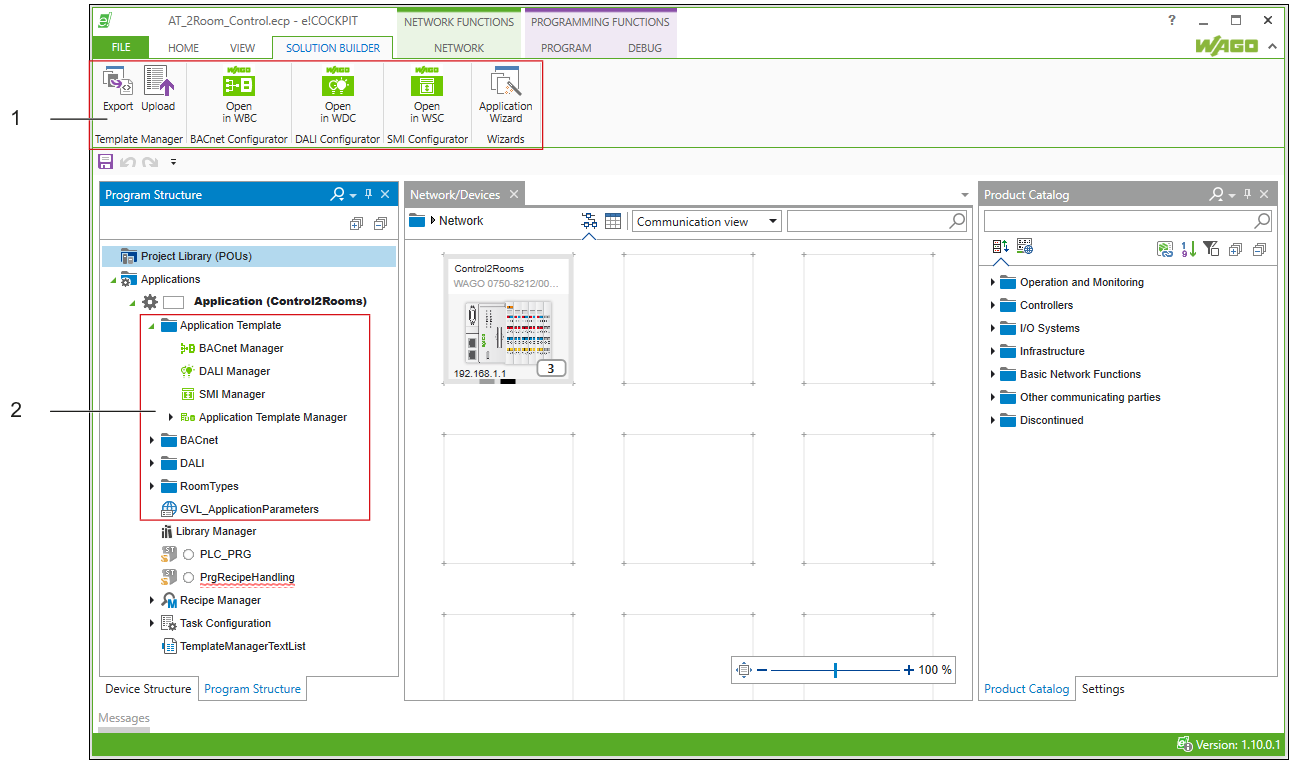

Structure of the Graphical User Interface – Main Areas (e!COCKPIT)
Structure of the Graphical User Interface – Main Areas (e!COCKPIT)

Position

Designation

Description

1

Main menu

Contains the main buttons, e.g., for exporting a completed application template or calling up configurators.

2

“Manager“ Objects

Manage the projects of the configurators within the program structure of development environments.

You can find more information in:
